SPECIFICATIONS

Acceleration Time (0-50km/h): 2.7s

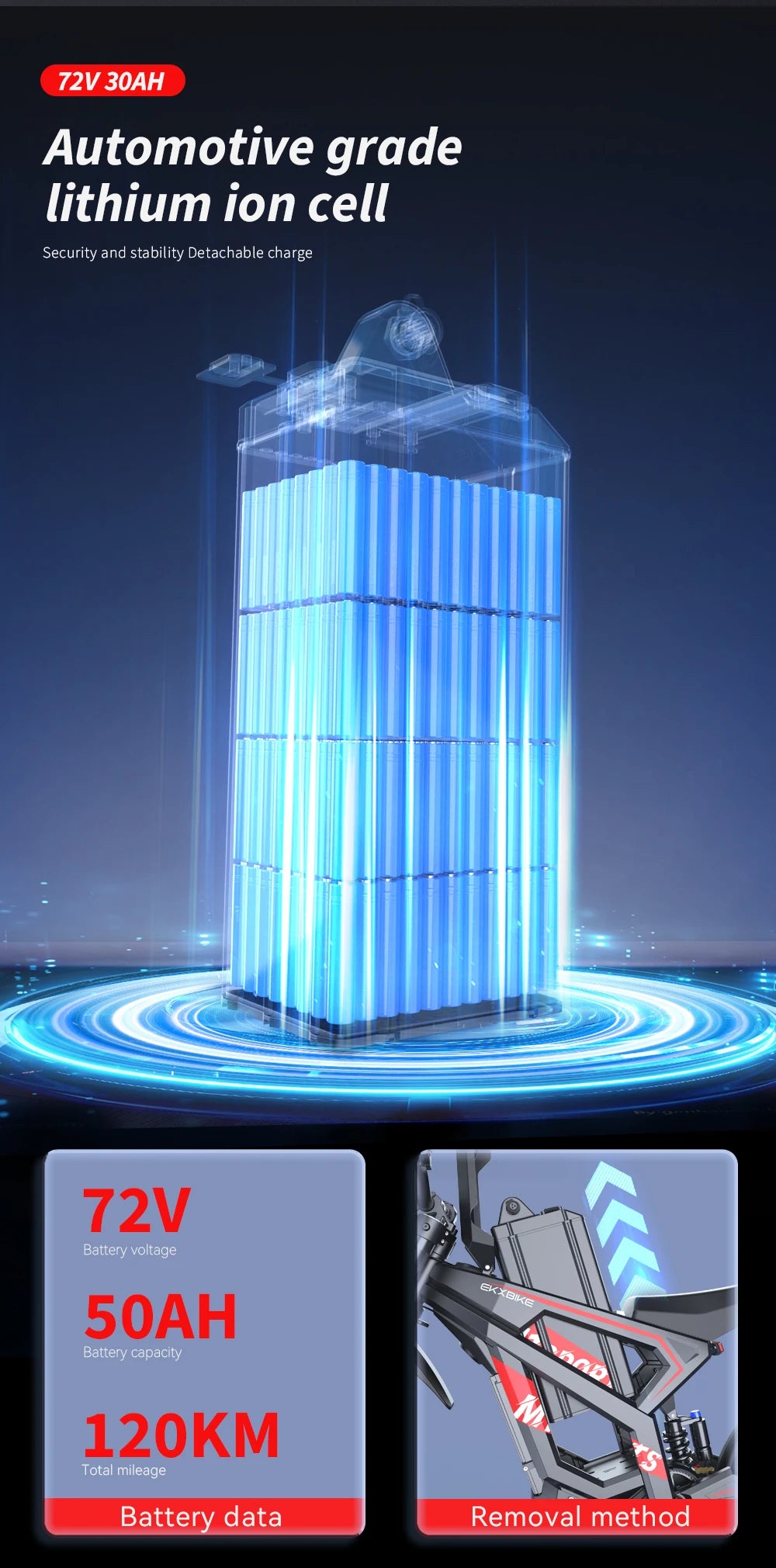

Battery Type: 72V/50Ah

Brand Name: EKX

Charging Time: 5h

Drivetrain: Belt + Chain Drive

Folded: No

Front Brake: Single disc/diameter 220mm-Four-piston caliper

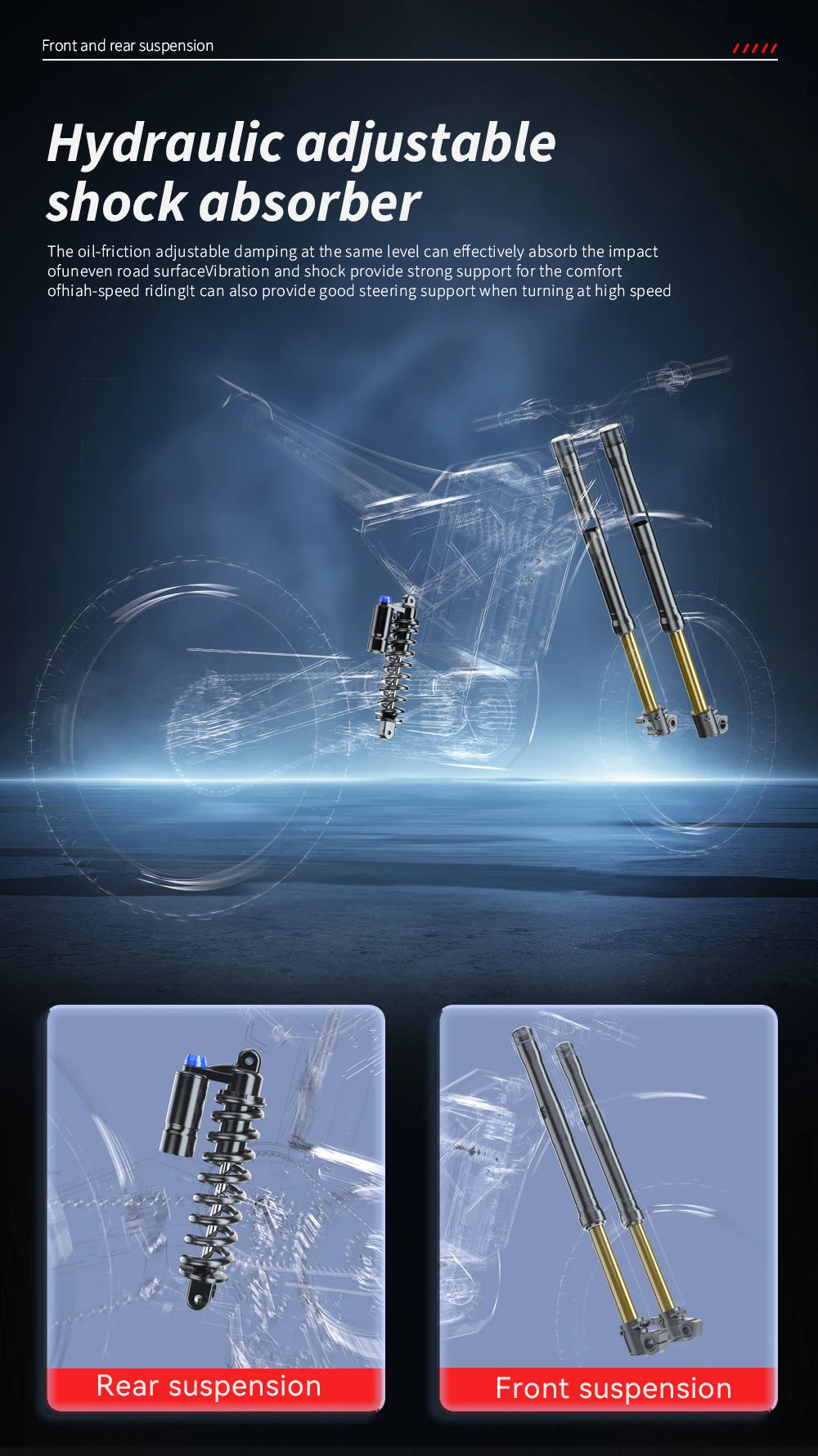

Front Suspension: Inverted Air Fork 800mmL/220mm Travel/diameter 38mm

Front Tire: 70/100-19 ChaoYang

Ground Clearance: 250mm

Handlebars: Aluminum Alloy

High-concerned chemical: none

Instrument Panel: 2-inch LCD

Maximum Torque: 560NM

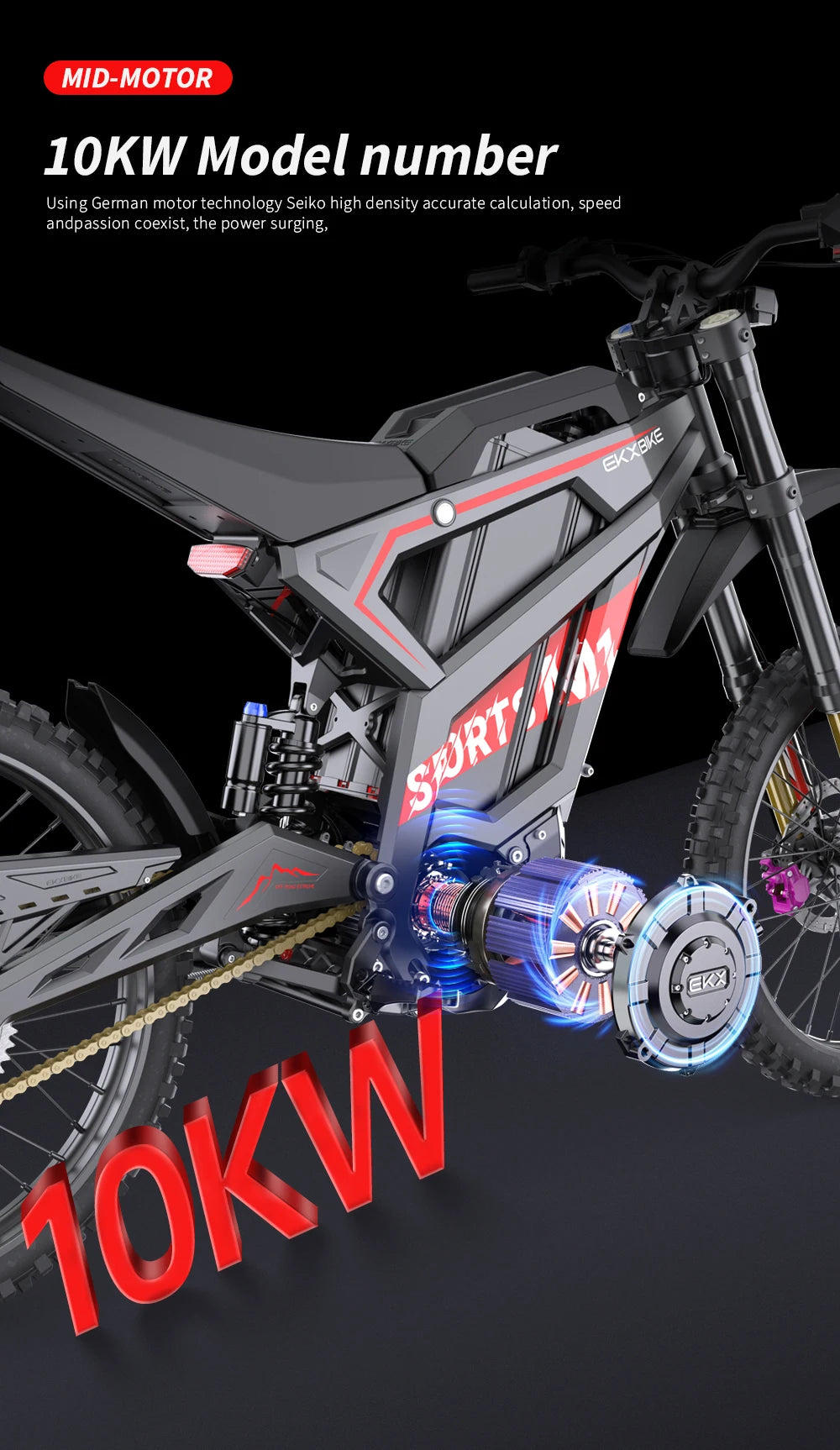

Motor Type: Mid-mounted permanent magnet synchronous air-cooled motor

Motorcycle Weight: 71.5KG

Origin: Mainland China

Overall Dimensions: 1895 (L) x 790 (W) x 1090 (H)

Package Dimensions: 1665 (L) x 315 (W) x 790 (H)

Peak Power: 16.8kw

Power Source: Lithium battery

Power Supply: Lithium battery

Rated Power: 10KW

Rear Brake: Single disc/diameter 220mm-Four-piston caliper

Rear Suspension: Three-Adjustable Air Fork

Rear Tire: 80/ 100-19 ChaoYang

Riding Modes: Pure Electric (3-speed)

Seat Height: 840mm

Swing Fork: Aluminum Alloy

Top Speed: 99.9km/h

Voltage: > 60 V

WMTC Range: 130km

Wattage: > 500w

Wheelbase: 1300mm

Motorcycle Weight (kg): 71.5KG

Wheelbase (mm): 1300

Seat Height (mm): 840

Ground Clearance (mm): 250

Overall Dimensions (mm): 1895 (L) x 790 (W) x 1090 (H)

Package Dimensions (mm): 1665 (L) x 315 (W) x 790 (H)

M1 Hardware Configuration:

Handlebars: Aluminum Alloy

Swing Fork: Aluminum Alloy

Front Suspension: Inverted Air Fork 800mmL/220mm Travel/φ38mm

Rear Suspension: Three-Adjustable Air Fork

Front Tire: 70/100-19

Rear Tire: 80/ 100-19 Front Brake: Single disc/φ220mm/Four-piston caliper

Rear Brake: Single disc/φ220mm/Four-piston caliper

Drivetrain: Belt + Chain Drive

M1 Software Parameters:

Charging Time (0-100%): 5h

Battery Type: 72V/50Ah

WMTC Range: 130km

Acceleration Time (0-50km/h): 2.7s

Maximum Torque: 560NM

Top Speed: 99.9km/h

Rated Power: 10KW

Motor Type: Mid-mounted permanent magnet synchronous air-cooled motor

Peak Power: 16.8kw

Instrument Panel: 2-inch LCD

Riding Modes: Pure Electric (3-speed)
